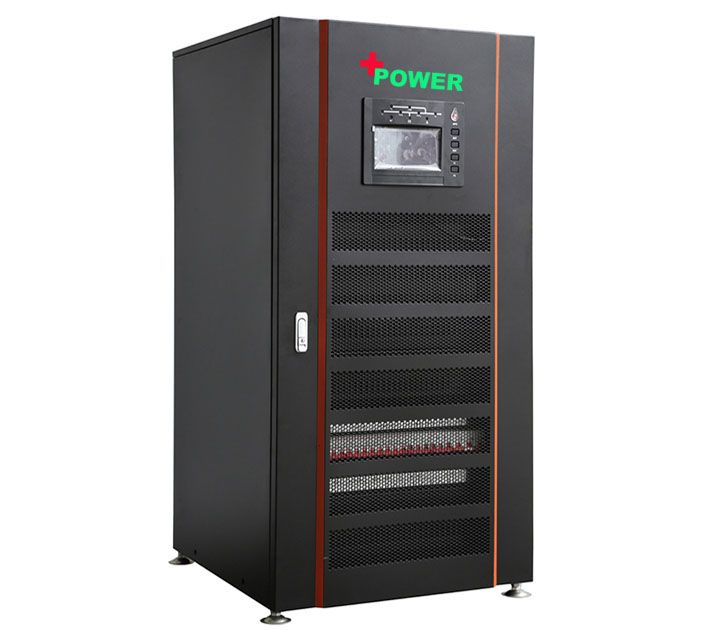

Hybrid Three Phase Series Inverters

Plus Power hybrid three-phase series inverter is an intelligent multi-function solar inverter, consisting of an MPPT solar Controller (high-power MPPT Controller external installation), charger, rectifier, inverter, static switch, main control circuit and display alarm circuit, and so on. According to the user’s actual application, you can set different modes: PV–Gird–Battery: This series PV inverter is designed for photovoltaic(PV) and Grid sharing function, solar priority, photovoltaic through the MPPT controller supply to the inverter, and outputs a pure sine AC to loads, meanwhile charging the battery pack; When the solar is not enough to supply the load, it is supplemented by the grid power; utmost use solar energy and grid power, to reduce battery discharge, external battery life span. PV-Battery-Grid (if grid stable, utmost use solar energy): photovoltaic through the MPPT controller supply to the inverter, after inverter output pure sine AC to the loads, meanwhile charging the battery pack; When the solar power is not enough to power the load and to utmost use solar energy, photovoltaic not enough to output power from the battery for replenishing, discharging the battery a little bit, and then switch to the grid supply; maximum utilize photovoltaically, to save electric bill.

Main Features:
_ Pure sine wave output
_ Built-in MPPT solar controller
_ Adopt 4-layer PCB and SMD technology
_ Can choose the AC charger by button: On-off
_ With two charging modes: AC charging mode and solar charging mode, solar charging priority.
_ Can choose two work modes: Solar-Grid-Battery, Solar –battery-Grid, Can choose it by the LCD screen
_ High-efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology: The sixth-generation low-exhaust and big-power IGBT with excellent high-speed switch feature, high voltage feature, and large current feature. Drives by electric voltage, only need small control power. The sixth generation with lower saturation voltage, and the inverter has high efficiency, low temperature, and high reliability.
_ Intelligent detecting function: This system microprocessor can continually online detect the power status, the breaker status, and all the working statuses of the circuit.
_ Excellent load feature: It is completely capable to load from 0-100% while no need to change to bypass, which makes sure the output is reliable.
_ Intelligent communication-URL Based Remote Monitoring and Operation: With RS232 and RS485 standard collocation, optional SNMP, and dry contact.
_ Perfect protection: Input/output over/low voltage protection, input surge protection, phase sequence protection, battery overcharge/discharge protection, short circuit protection, over-temperature protection, and so on, as well as an alarm function.
_ Selectable battery inspection module: Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the administrator.
_ High-powered dynamic feature: Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic adjustment but also reduce the output voltage distortion.
