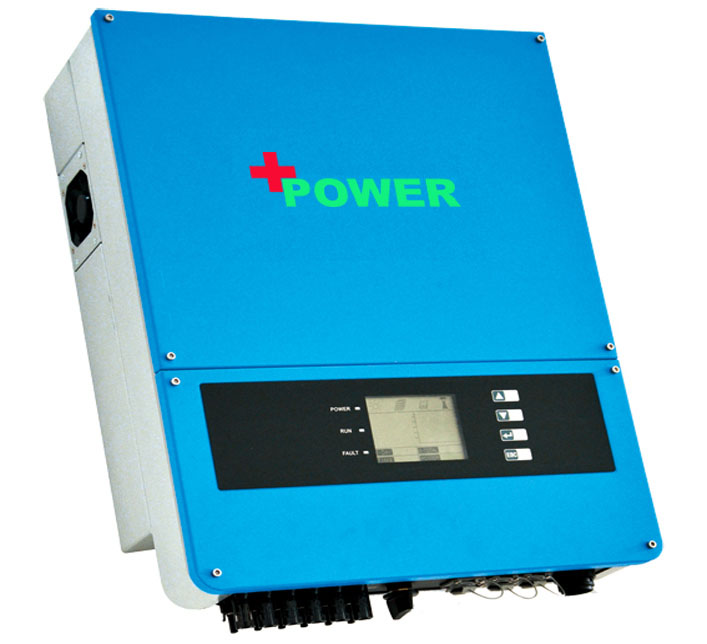

Description
| Input (DC Side) | ON3-5000L | ON3-6000L | ON3-8000L | ON3-10KL | ON3-12KL | ON3-15KL | ON3-20KL |
| Max DC input power(W) | 6500 | 7500 | 9600 | 12000 | 14400 | 18000 | 24000 |
| Max DC voltage(Vdc) | 900 | 900 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Start voltage(Vdc) | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| MPPT voltage range(Vdc) | 200-850 | 200-850 | 200-960 | 200-960 | 200-960 | 200-960 | 200-960 |
| Number of inputs | 2 | 2 | 2 | 2 | 4 | 3 | 4 |
| Number of MPPT | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Max. input current(A) | 2*13 | 2*13 | 2*13 | 2*13 | 2*13 | 2*25 | 2*25 |
| Output(AC Side) | |||||||
| Rated output power(W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 |
| Max. output power(VA) | 6500 | 7500 | 9600 | 12000 | 14400 | 18000 | 24000 |
| Rated output current(A) | 7. | 9. | 12. | 14. | 17. | 22. | 29. |
| Max. output current(A) | 8. | 10. | 13. | 16. | 19 | 24. | 32. |
| Rated output voltage(Vac) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Output voltage range(Vac)* | 323-480 | 323-480 | 323-480 | 323-480 | 323-480 | 323-480 | 323-480 |
| Grid frequency range(Hz)* | 50/60+5 | 50/60+5 | 50/60+5 | 50/60+5 | 50/60+5 | 50/60+5 | 50/60+5 |
| Power factor (cosh) | 0.8(leading)-0.8(laggin9) | ||||||
| THDI | <3% I <3% I <3% I <3% I <3% I <3% I <3% | ||||||
| Efficiency | |||||||
| Max. efficiency | 98.% | 98.% | 98.% | 98.% | 98.% | 98.% | 98.% |
| Euro. efficiency | 97.% | 97.% | 97.% | 98.% | 98.% | 98.% | 98.% |
| MPPT efficiency | 100.% | 100.% | 100.% | 100.% | 100.% | 100.% | 100.% |
| Protections | |||||||
| Built-in protections | DC reverse polarity, short circuit, output over current, output over-voltage, insulation resistance monitoring, residual current detection, surge protection, anti-island protection, over-temperature protection |
||||||
| Lighting protection | DC TYPE/ AC TYPE | ||||||
| General data | |||||||
| Operating temperature(°C) | -25–+60 | -25–+60 | -25–+60 | -25–+60 | -25–+60 | -25–+60 | -25–+60 |
| Noise {dB(A)} | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Night power consumption(W) | <2 | <2 | <2 | <2 | <2 | <2 | <2 |
| Electrical isolation | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Cooling concept | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling |
| Degree of protection | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Communication :RS232/WIFI/GPF | Yes/Opt/Opt | Yes/Opt/Opt | Yes/Opt/Opt | Yes/Opt/Opt | Yes/Opt/Opt | Yes/Opt/Opt | Yes/Opt/Opt |
| Dimension(W*D*H mm) | 355*190*450 | 355*190*450 | 355*190*450 | 355*190*450 | 355*190*450 | 410*210*258 | 410*210*258 |
| weight (Kg) | 18 | 18 | 18 | 18 | 18 | 28 | 28 |
| Input (DC Side) | ON3-30KL | ON3-33KL | ON3-40KL | ON3-50KL | ON3-60KL |
| Max DC input power(W) | 36000 | 39600 | 48000 | 60000 | 72000 |
| Max DC voltage(Vdc) | 1000 | 1000 | 1100 | 1100 | 1100 |
| Start voltage(Vdc) | 200 | 200 | 200 | 200 | 200 |
| MPPT voltage range(Vdc) | 200-960 | 200-960 | 200-1000 | 200-1000 | 200-1000 |
| Number of inputs | 6 | 6 | 8 | 10 | 12 |
| Number of MPPT | 3 | 3 | 3 | 4 | 4 |
| Max. input current(A) | 3*25 | 3*25 | 19/28/28 | 19/28/19/28 | 4*30 |
| Output(AC Side) | |||||
| Rated output power(W) | 30000 | 33000 | 40000 | 50000 | 60000 |
| Max. output power(VA) | 36000 | 39600 | 48000 | 60000 | 72000 |
| Rated output current(A) | 43.3 | 47. 6 | 57.7 | 72.2 | 86.6 |
| Max. output current(A) | 47.6 | 52.3 | 63.5 | 79.4 | 95.3 |
| Rated output voltage(Vac) | 400 | 400 | 400 | 400 | 400 |
| Output voltage range(Vac)* | 323-480 | 323-480 | 323-480 | 323-480 | 323-480 |
| Grid frequency range(Hz)* | 50/60+5 | 50/60+5 | 50/60+5 | 50/60+5 | 50/60+5 |
| Power factor (cosϕ) | 0.8(leading)~0.8(lagging) | ||||
| THDI | <3% | <3% | <3% | <3% | <3% |
| Efficiency | |||||
| Max. efficiency | 98. .20% | 98.20% | 98.10% | 98. .50% | 98. .80% |
| [Euro. efficiency | 97.60% | 97.80% | 98.00% | 98.10% | 98.20% |
| MPPT efficiency | 99.90% | 99.90% | 99. 90% | 99. .90% | 99. .90% |
| Protections | |||||
| Built-in protections | reverse polarity, short circuit, output over current, output over-voltage, insulation resistance monitoring residual current detection, surge protection, anti-island protection, over temperature protection | ||||
| Lighting protection | –DC TYPE/ ACTYPE- | ||||
| General data | |||||
| Operating temperature(C) | -25~+60 | -25~+60 | -25~+60 | -25~+60 | -25~+60 |
| Noise {dB(A)} | ≦30 | ≦30 | ≦60 | ≦60 | ≦60 |
| Night power consumption(W) | <2 | <2 | <2 | <2 | <2 |
| Electrical isolation | Transformerless | Transformerless | Transformerless | _Transformerless | Transformerless |
| Cooling concept | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling |
| Degree of protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Communication :RS232/RS485/WIFI/GPF | Yes/Yes/Opt/Opt | Yes/Yes/Opt/Opt | Yes/Yes/Opt/Opt | Yes/Yes/Opt/Opt | Yes/Yes/Opt/Opt |
| [Dimension(W*D*H mm) | 476*258*630 | 476*258*630 | 476* 258* 740 | 545*270* 782 | 545*270*782 |
| weight (Kg) | 42 | 45 | 53 | 58 | 62 |
| *AC grid voltage range and frequency range depend on local standards | |||||
| Input (DC Side) | ON3-100KL | ON3-150KL | ON3-175KL |
| Max DC input power(KW) | 115 | 172 | 202 |
| Max DC voltage(Vdc) | 1000 | 1000 | 1000 |
| Start voltage(Vdc) | 490 | 490 | 490 |
| MPPT voltage range(Vdc) | 450-820 | 450-820 | 450-820 |
| Number of inputs | 2 | 4 | 4 |
| Number of MPPT | 1 | 1 | 1 |
| Max. input current(A) | 250 | 380 | 500 |
| Output(AC Side) | |||
| Rated output power(KW) | 100 | 150 | 175 |
| Max. output power(KW) | 110 | 165 | 192 |
| Rated output current(A) | 144 | 217 | 254 |
| Max. output current(A) | 158 | 238 | 280 |
| Rated output voltage(Vac) | 400 | 400 | 400 |
| Output voltage range(Vac)* | 360-440 | 360-440 | 360-440 |
| Grid frequency range(Hz)* | 50+5 | 50+5 | 50+5 |
| Power factor (cosϕ) | 0.9(leading)~0.9(lagging) | ||
| THDI | <3% | <3% | <3% |
| Efficiency | |||
| Max. efficiency | 97.10% | 97.20% | 97.20% |
| Euro. efficiency | 96.40% | 96.50% | 96.60% |
| MPPT efficiency | 99.90% | 99.90% | 99.90% |
| Protections | |||
| Built-in protections | DC reverse polarity, short circuit, output over current, output over-voltage, insulation resistance monitoring, residual current detection, surge protection, anti-island protection, over temperature protection | ||
| General data | |||
| Operating temperature(‘C) | -25~+60 | -25~+60 | -25~+60 |
| Max altitude(m) | 6000 | 6000 | 6000 |
| Noise {dB(A)} | ≦65 | ≦65 | ≦65 |
| Night power consumption(W) | <100 | <100 | <100 |
| Electrical isolation | Transformerless | Transformerless | Transformerless |
| Cooling concept_ | Forced air cooling | Forced air cooling | Forced air cooling |
| Degree of protection | IP20 | IP20 | IP20 |
| Communication port | RS485 | RS485 | RS485 |
| Dimension(W*D*H mm) | 750*1750*640 | 1000*830* *2000 | 1000 *830*2000 |
| weight (Kg) | 780 | 1100 | 1150 |
| *AC grid voltage range and frequency range depend on local standards | |||
